4K/2K HDMI over HDbsaeT Extender with USB support touch screen

alt

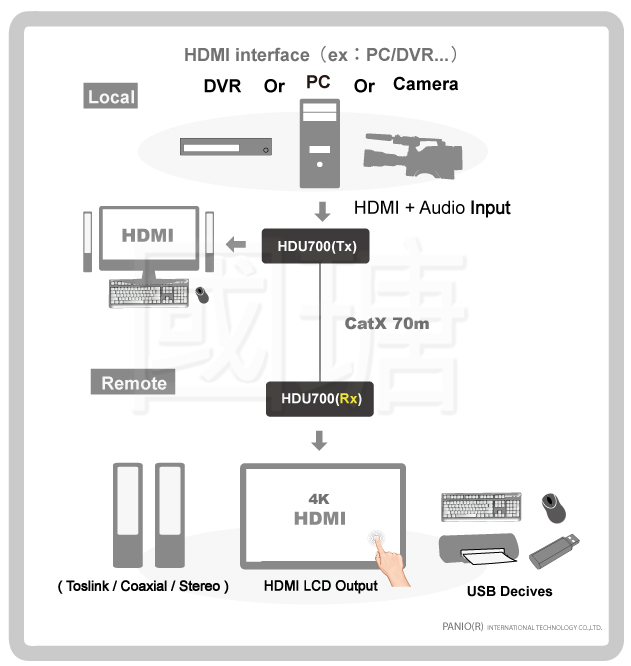

HDMI USB Extender over HDBaseT - CAT5e/6/7 Support Touch Screen
[HDU700] is the unique and high-performance HDBaseT AV/PC Extender supporting HDMI, USB HID, high-quality
S/PDIF Audio Line Out and IR at the best strengthened competitive price in the market. By using HDBaseT and PANIO's
advanced technology HDU700 features up to 70m (210ft) extension of uncompressed 4K/2K & 1080p HDMI video, True
USB HID Emulation, triple Audio Line Outs (TOSLINK/SPDIF/Stereo) and bi-direction IR via a single CAT-5e/6 cable.
Being capable of HDMI & USB HID extension, HDU-700 is also ideal for interactive digital signage, KVM extension besides AVextension.
alt
alt
Adopts HDBaseT technology for HDMI extension
alt
No software or driver required for USB HID ( Human Interface Device ) extension,
alt
Plug-and-Play using inexpensive CAT.5e/6/7 cables
alt
Supports HDMI Deep color & Full 3D, up to 4K/2K@30
alt
HDTV compatible ( 720p, 1080i, 1080p, 4K/2K )
Extends transmission up to 70m (230ft) at Full HD 1080p@60, 48-bit,
and 40m (130ft) at 4K/2K@30, 24-bit
alt
HDCP & EDID compliant-pass thru
Support CEC and auto-equalization
Supports High Definition Audio (HD) surround sound
Supports triple Audio Line Outs ( Toslink / Coaxial / Stereo )
Bi-directional IR extension, full range from 20KHz to 60KHz
Supports HDMI local loopback in Transmitter (TX) box
Bracket mountable for easy and robust installation
alt
Made in Taiwan
alt
alt
alt
alt
2 X IR Cable 2 X RS232 Cable 2 X DC 5V 2A
1 X USB Cable
alt

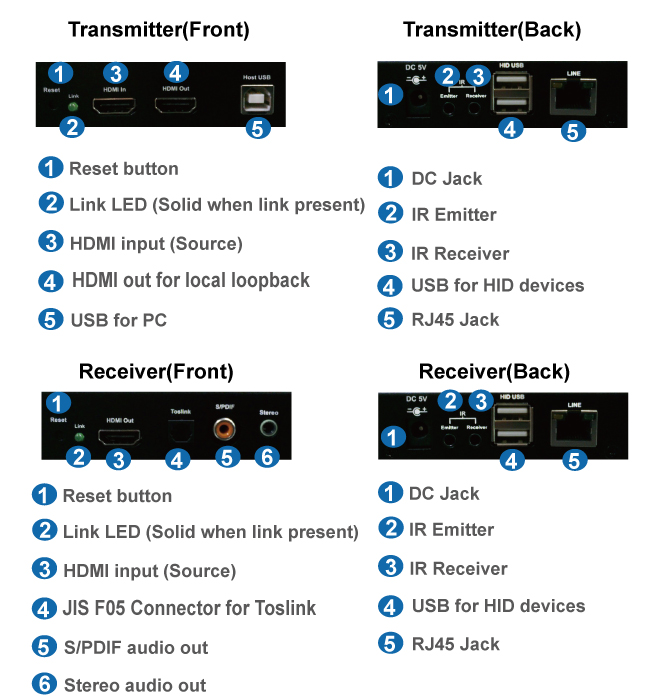

MODLE NAME HDU700 (Transmitter) HDU700 (Receiver)
I/O Ports
 HDMI OUT HDMI (Female) HDMI (Female)
HDMI IN HDMI (Female) N/A
USB Type A / Type B Type A
Toslink audio out N/A JIS F05
S/PDIF audio out N/A RCA Jack
Stereo audio out N/A Earphone Jack
Extension Line RJ45 RJ45
Audio Supports High Definition Audio (HD) , Surround Sound,
Dolby TrueHD, uncompressed 7.1ch digital, LPCM 2-ch
IR Bi-directional 20KHz to 60KHz
LED Indicators
 Link Status Red LED
DDC Supported DDC, DDC2, DDC2B
Extension Cable Type & Length CAT-5e/6/7 , Max. Length : 70m (for 1080p) / 40m (for 4K/2K)
Max. Video Resolution 4K/2K@30Hz@24-bit // 4K/2K@60Hz@24-bit@4: 2: 0 pixel
format
Wide Screen Supported Yes
OS Compatibility OS Independent
Power Supply External DC 5V / 2A Power Adapter
Dimension ( L x W x H ) 115 x 91 x 28 mm
Weight 350g 425g
Housing material Metal
Operating Temperature 32 - 122 F ( 0 - 50 C )
Humidity
 0% - 80% RH

Ubicación : NO.159,puding6th st,Daxi Township,Taoyuan County335 Taiwan, 335000 Taoyuan,
Persona a contactar : wendy shen, +88 6 33 07 13 00
